Proven

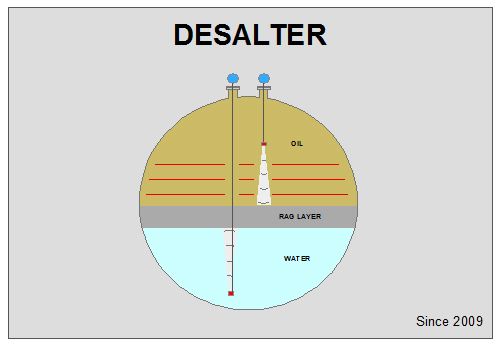

InterFazer provides multiple functions including interface measurement, emulsion monitoring and solids accumulation in the desalter. Successful testing at a major oil company led to the development of a proven, data driven instrument design which is unique and distinct to the industry.

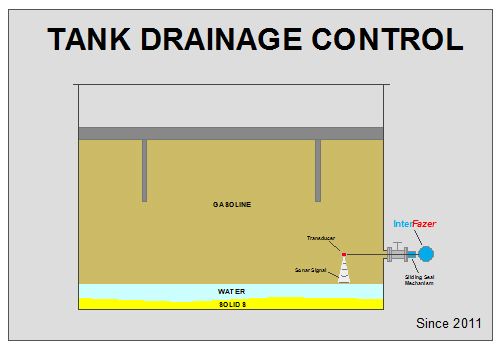

In service since 2011, retractable probe measuring the interface between product and water at a major US refinery tank farm. Device has performed accurately and reliably without any maintenance. The application has increased storage capacity, reduced operating cost and enhanced safety.

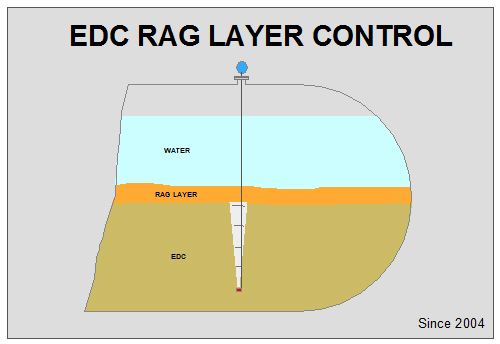

First unit in service in EDC since 2004. This application is unique because the fluids involved are close in density and dielectric characteristics. This is a dirty, contaminated and highly corrosive process making this one of the most difficult applications. InterFazer controls the rag layer and water separation process. Rag layer data has been collected and used to optimize the process.
